Multi Lock Ties
High-strength Grade 316 stainless steel multi-lock ties designed for secure cable bundling in demanding indoor and outdoor environments. Available in uncoated and polyester-coated variants.
- Grade 316 Stainless Steel Multi Lock Construction
- Available in 7 mm and 12 mm Widths
- Uncoated and Polyester Coated Variants
Grade 316 Multi Lock Ties
B-Tec Multi Lock Ties are manufactured from Grade 316 stainless steel for reliable performance in demanding applications. The range is available in natural uncoated stainless steel and black polyester-coated finishes, with 7 mm and 12 mm width options.
- Grade 316 Stainless Steel Construction
- Uncoated and Polyester-Coated Variants
- UV-Resistant and Weatherproof
- Suitable for Indoor and Outdoor Use
- Available in 7 mm and 12 mm Widths
- Package Quantity: 100 Pieces

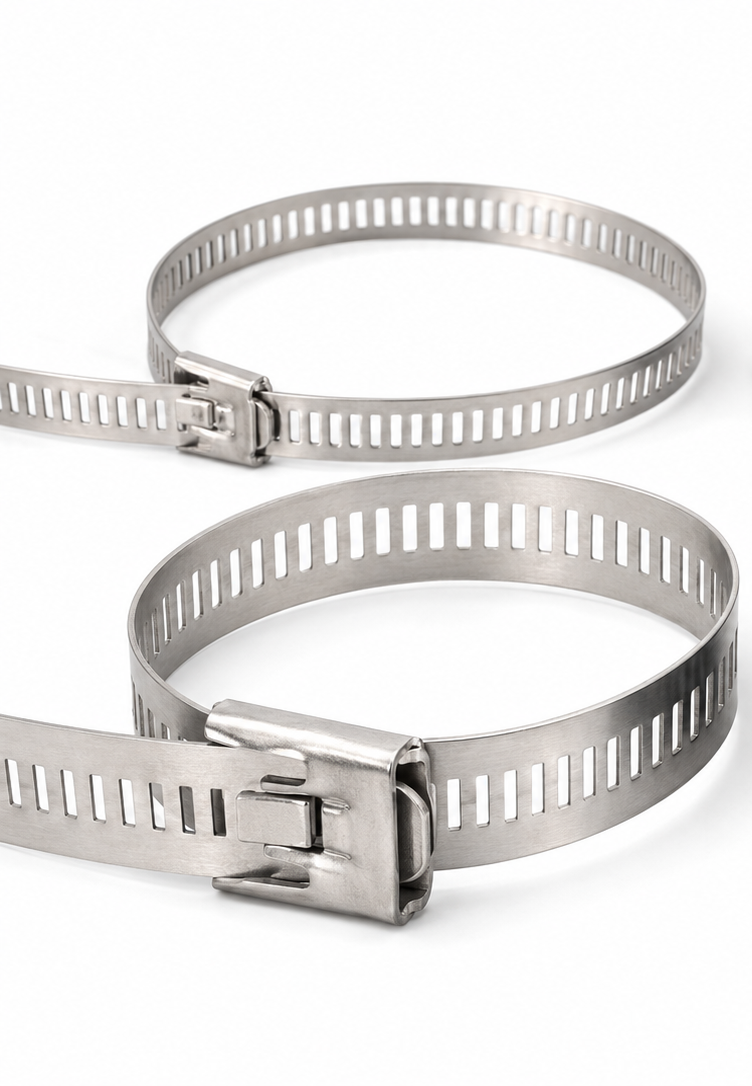

Stainless Steel Grade 316 — Uncoated
Stainless Steel Grade 316 — Uncoated
- Temperature Range: (−) 80°C to 538°C
- Flammability: Fire Proof
- UV Resistant, Weather Proof, Indoor / Outdoor Use
- B-Tec Part Code Prefix: BT6MUNC
Swipe to view full specifications →
| B-Tec Part Code | Type | Width (mm) | Length (mm) | Thickness (mm) | Max Bundle Dia (mm) | Min Loop Tensile Strength N (Lbs) | Package Qty (Pcs) | Approx. Wt / Bag (Kgs) |
|---|---|---|---|---|---|---|---|---|
| BT6MUNC | 7 x 150 | 7 | 150 | 0.3 | 37 | 1110 (250) | 100 | 0.27 |
| BT6MUNC | 7 x 225 | 7 | 225 | 0.3 | 58 | 1110 (250) | 100 | 0.43 |
| BT6MUNC | 7 x 300 | 7 | 300 | 0.3 | 83 | 1110 (250) | 100 | 0.55 |
| BT6MUNC | 7 x 450 | 7 | 450 | 0.3 | 131 | 1110 (250) | 100 | 0.75 |
| BT6MUNC | 7 x 610 | 7 | 610 | 0.3 | 179 | 1110 (250) | 100 | 1.05 |
| BT6MUNC | 12 x 150 | 12 | 150 | 0.3 | 37 | 2000 (450) | 100 | 1.10 |
| BT6MUNC | 12 x 225 | 12 | 225 | 0.3 | 58 | 2000 (450) | 100 | 0.50 |
| BT6MUNC | 12 x 300 | 12 | 300 | 0.3 | 83 | 2000 (450) | 100 | 0.80 |
| BT6MUNC | 12 x 450 | 12 | 450 | 0.3 | 131 | 2000 (450) | 100 | 1.00 |
| BT6MUNC | 12 x 610 | 12 | 610 | 0.3 | 179 | 2000 (450) | 100 | 1.35 |
| BT6MUNC | 12 x 760 | 12 | 760 | 0.3 | 220 | 2000 (450) | 100 | 1.90 |

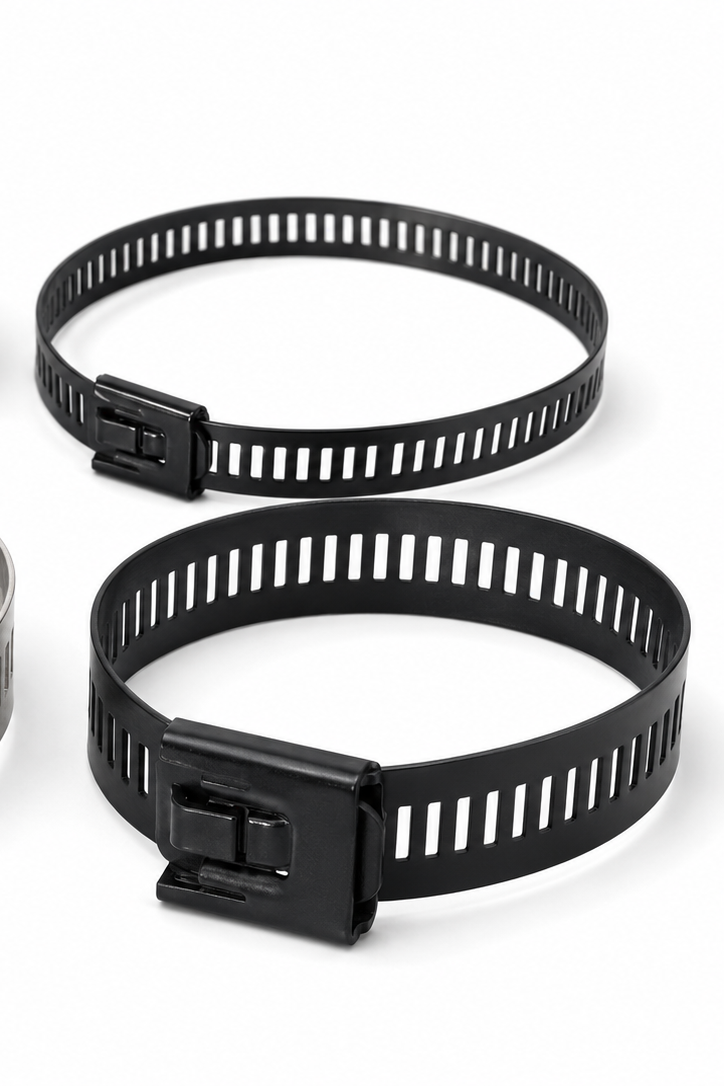

Stainless Steel Grade 316 — Polyester Coated
Stainless Steel Grade 316 — Polyester Coated
- Temperature Range: (−) 40°C to 150°C
- Flammability: Fire Retardant, Non-Toxic, Zero Halogen, Low Smoke
- UV Resistant, Weather Proof, Indoor / Outdoor Use
- B-Tec Part Code Prefix: BT6MEFC
Swipe to view full specifications →
| B-Tec Part Code | Type | Width (mm) | Length (mm) | Thickness (mm) | Max Bundle Dia (mm) | Min Loop Tensile Strength N (Lbs) | Package Qty (Pcs) | Approx. Wt / Bag (Kgs) |
|---|---|---|---|---|---|---|---|---|
| BT6MEFC | 7 x 150 | 7 | 150 | 0.3 | 37 | 1110 (250) | 100 | 0.27 |
| BT6MEFC | 7 x 225 | 7 | 225 | 0.3 | 58 | 1110 (250) | 100 | 0.43 |
| BT6MEFC | 7 x 300 | 7 | 300 | 0.3 | 83 | 1110 (250) | 100 | 0.55 |
| BT6MEFC | 7 x 450 | 7 | 450 | 0.3 | 131 | 1110 (250) | 100 | 0.75 |
| BT6MEFC | 7 x 610 | 7 | 610 | 0.3 | 179 | 1110 (250) | 100 | 1.05 |
| BT6MEFC | 12 x 150 | 12 | 150 | 0.35 | 37 | 2000 (450) | 100 | 1.10 |
| BT6MEFC | 12 x 225 | 12 | 225 | 0.35 | 58 | 2000 (450) | 100 | 0.50 |
| BT6MEFC | 12 x 300 | 12 | 300 | 0.35 | 83 | 2000 (450) | 100 | 0.80 |
| BT6MEFC | 12 x 450 | 12 | 450 | 0.35 | 131 | 2000 (450) | 100 | 1.00 |
| BT6MEFC | 12 x 610 | 12 | 610 | 0.35 | 179 | 2000 (450) | 100 | 1.35 |
| BT6MEFC | 12 x 760 | 12 | 760 | 0.35 | 220 | 2000 (450) | 100 | 1.90 |
Recommended Installation Tools
BTCT007
Cable Tie Tensioning & Manual Cutting Tool
Suitable for cable ties from 4.6 mm to 12 mm width. Weight: 0.75 kg.

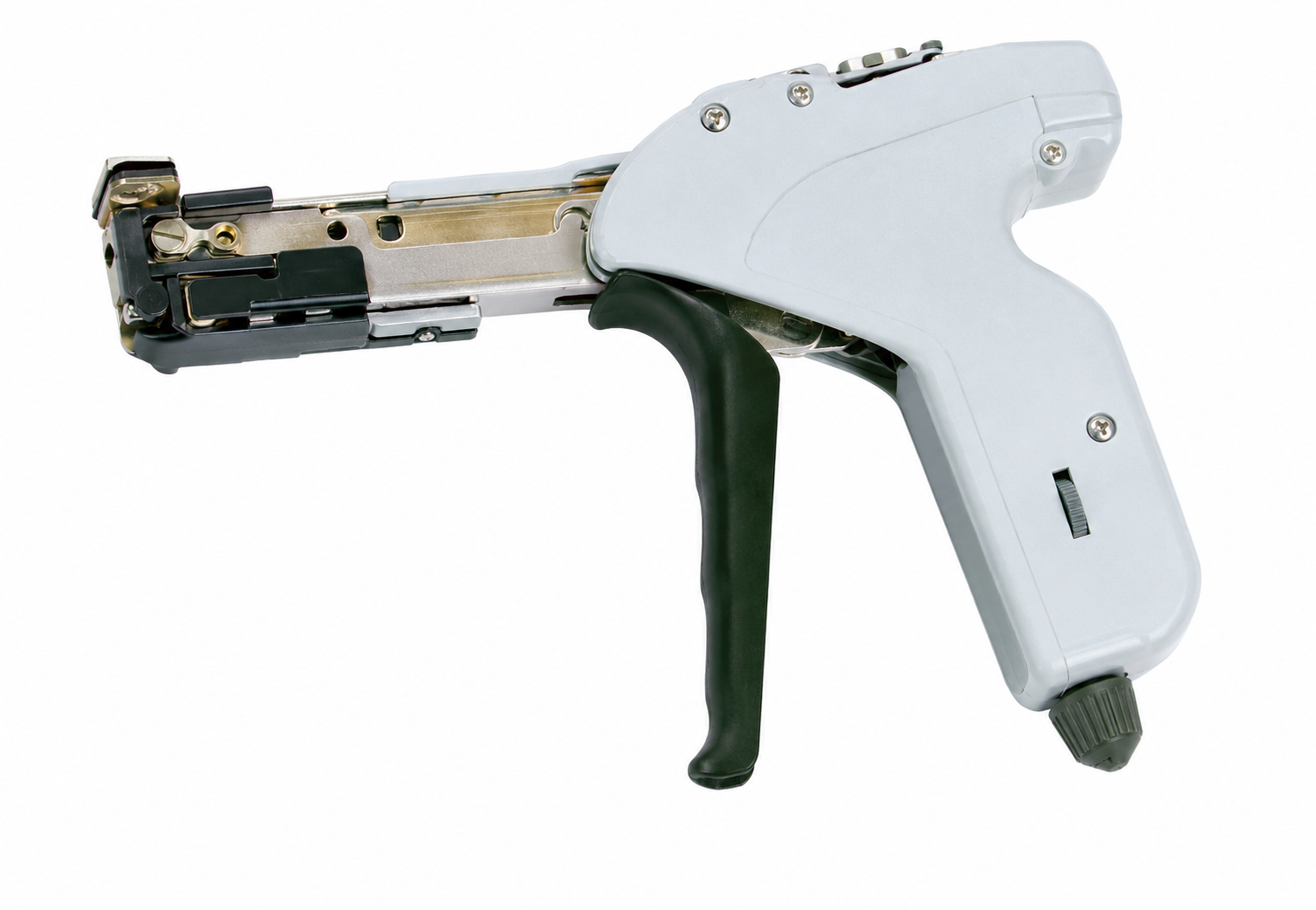

BTCT008
Cable Tie Tensioning & Auto Cutting Tool
Suitable for cable ties of 4.6 mm and 7.9 mm width. Weight: 0.7 kg.

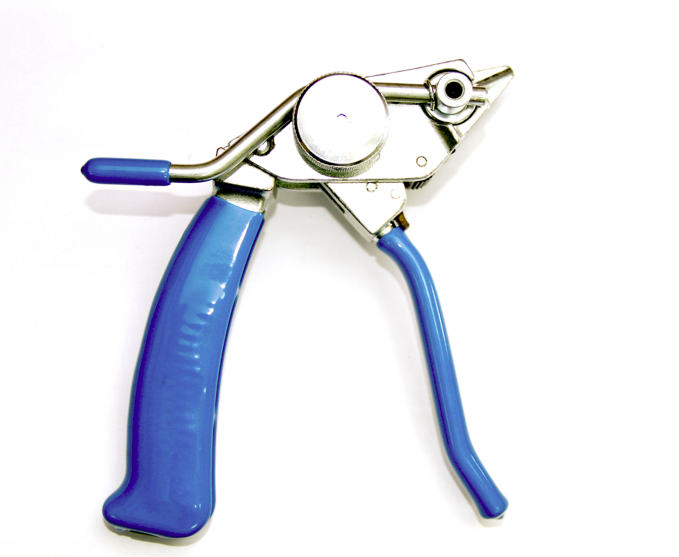

BTST009
Tensioning & Cutting Tool
Suitable for 6 mm to 16 mm width. Designed for stainless steel bands, coated bands and cable ties. Weight: 1.0 kg.
