Releasable Ties
Grade 316 stainless steel releasable ties designed for secure, adjustable cable bundling in demanding indoor and outdoor environments. Available in uncoated and polyester-coated variants.
- Grade 316 Stainless Steel Releasable Construction
- Available in 6.35 mm and 9.50 mm Widths
- Uncoated and Polyester Coated Variants

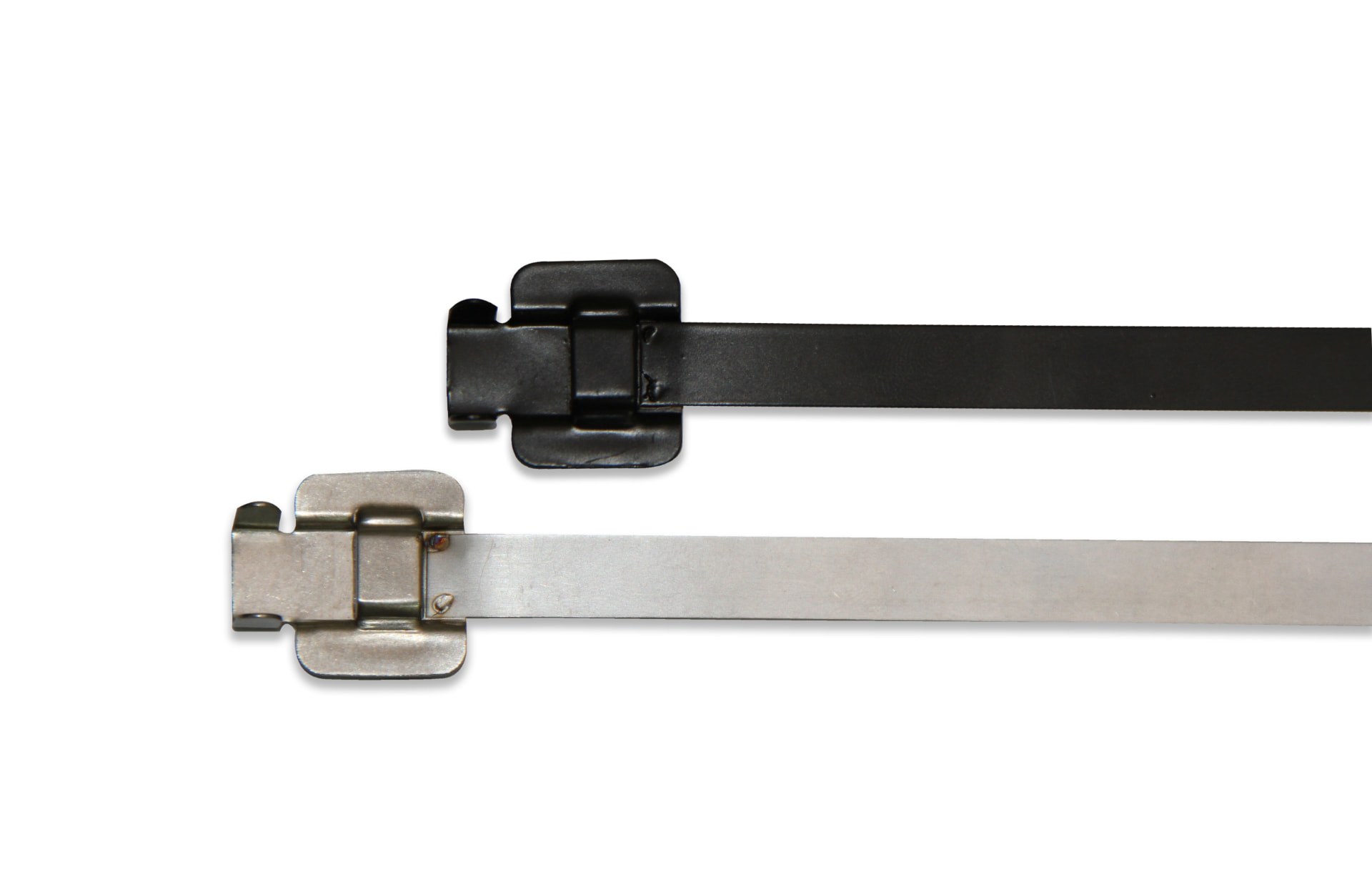

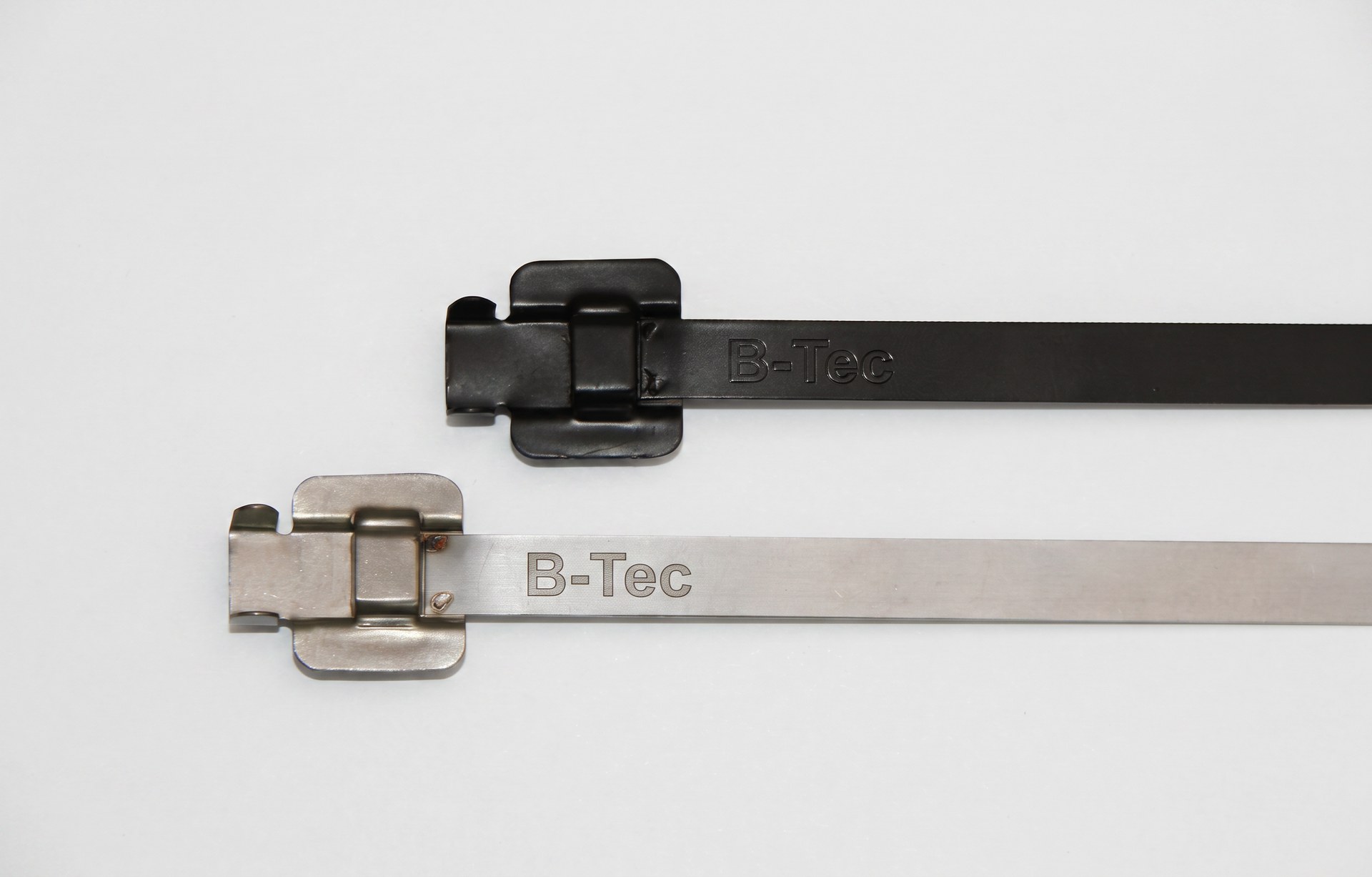

Grade 316 Releasable Ties
B-Tec Releasable Ties are manufactured from Grade 316 stainless steel for reliable cable bundling in demanding environments. Their releasable locking design supports secure installation and adjustment, with uncoated and black polyester-coated variants available in 6.35 mm and 9.50 mm widths.
- Grade 316 Stainless Steel Construction
- Releasable Locking Design
- Uncoated and Polyester-Coated Variants
- UV-Resistant and Weatherproof
- Suitable for Indoor and Outdoor Use
- Available in 6.35 mm and 9.50 mm Widths
- Package Quantity: 100 Pieces

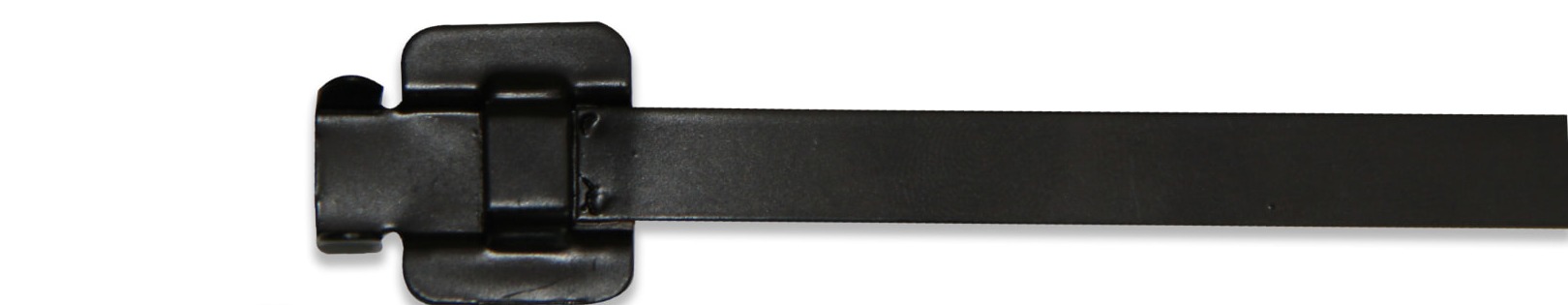

Stainless Steel Grade 316 — Polyester Coated
Stainless Steel Grade 316 — Polyester Coated
- Temperature Range: (−) 40°C to 150°C
- Flammability: Fire Retardant, Non-Toxic, Zero Halogen, Low Smoke
- UV Resistant, Weather Proof, Indoor / Outdoor Use
- B-Tec Part Code Prefix: BT6REFC
Swipe to view full specifications →
| B-Tec Part Code | Type | Width (mm) | Length (mm) | Thickness (mm) | Max Bundle Dia (mm) | Min Loop Tensile Strength N (Lbs) | Package Qty (Pcs) | Approx. Wt / Bag (Kgs) |
|---|---|---|---|---|---|---|---|---|
| BT6REFC | 6.35 × 150 | 6.35 | 150 | 0.38 | 38 | 1200 (270) | 100 | 0.65 |
| BT6REFC | 6.35 × 225 | 6.35 | 225 | 0.38 | 62 | 1200 (270) | 100 | 0.85 |
| BT6REFC | 6.35 × 300 | 6.35 | 300 | 0.38 | 85 | 1200 (270) | 100 | 1.00 |
| BT6REFC | 6.35 × 360 | 6.35 | 360 | 0.38 | 106 | 1200 (270) | 100 | 1.20 |
| BT6REFC | 6.35 × 450 | 6.35 | 450 | 0.38 | 135 | 1200 (270) | 100 | 1.45 |
| BT6REFC | 6.35 × 600 | 6.35 | 600 | 0.38 | 180 | 1200 (270) | 100 | 1.80 |
| BT6REFC | 9.5 × 150 | 9.50 | 150 | 0.38 | 38 | 1900 (425) | 100 | 0.85 |
| BT6REFC | 9.5 × 225 | 9.50 | 225 | 0.38 | 62 | 1900 (425) | 100 | 1.15 |
| BT6REFC | 9.5 × 300 | 9.50 | 300 | 0.38 | 85 | 1900 (425) | 100 | 1.50 |
| BT6REFC | 9.5 × 360 | 9.50 | 360 | 0.38 | 106 | 1900 (425) | 100 | 1.80 |
| BT6REFC | 9.5 × 450 | 9.50 | 450 | 0.38 | 135 | 1900 (425) | 100 | 2.30 |
| BT6REFC | 9.50 × 600 | 9.50 | 600 | 0.38 | 180 | 1900 (425) | 100 | 3.15 |
| BT6REFC | 9.5 × 760 | 9.50 | 760 | 0.38 | 230 | 1900 (425) | 100 | 3.30 |

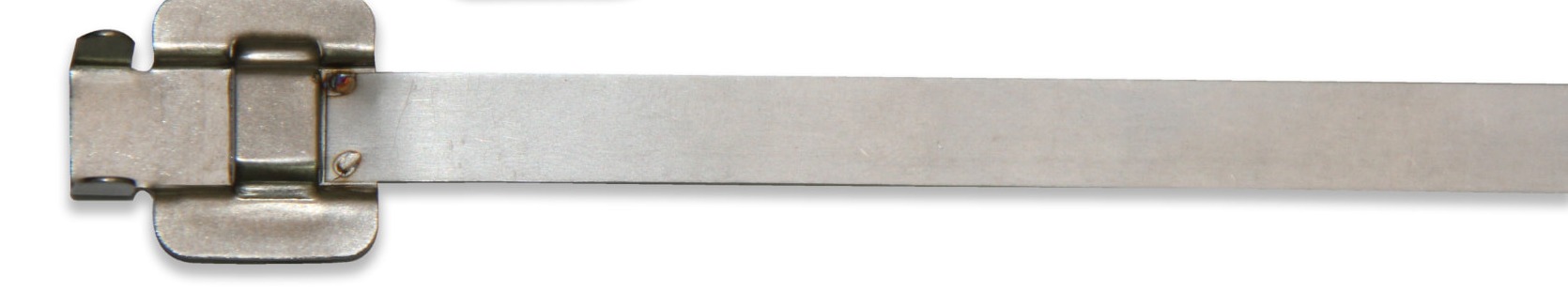

Stainless Steel Grade 316 — Uncoated
Stainless Steel Grade 316 — Uncoated
- Temperature Range: (−) 80°C to 538°C
- Flammability: Fire Proof
- UV Resistant, Weather Proof, Indoor / Outdoor Use
- B-Tec Part Code Prefix: BT6RUNC
Swipe to view full specifications →
| B-Tec Part Code | Type | Width (mm) | Length (mm) | Thickness (mm) | Max Bundle Dia (mm) | Min Loop Tensile Strength N (Lbs) | Package Qty (Pcs) | Approx. Wt / Bag (Kgs) |
|---|---|---|---|---|---|---|---|---|
| BT6RUNC | 6.35 × 150 | 6.35 | 150 | 0.38 | 38 | 1200 (270) | 100 | 0.65 |
| BT6RUNC | 6.35 × 225 | 6.35 | 225 | 0.38 | 62 | 1200 (270) | 100 | 0.85 |
| BT6RUNC | 6.35 × 300 | 6.35 | 300 | 0.38 | 85 | 1200 (270) | 100 | 1.00 |
| BT6RUNC | 6.35 × 360 | 6.35 | 360 | 0.38 | 106 | 1200 (270) | 100 | 1.20 |
| BT6RUNC | 6.35 × 450 | 6.35 | 450 | 0.38 | 135 | 1200 (270) | 100 | 1.45 |
| BT6RUNC | 6.35 × 600 | 6.35 | 600 | 0.38 | 180 | 1200 (270) | 100 | 1.80 |
| BT6RUNC | 9.5 × 150 | 9.50 | 150 | 0.38 | 38 | 1900 (425) | 100 | 0.85 |
| BT6RUNC | 9.5 × 225 | 9.50 | 225 | 0.38 | 62 | 1900 (425) | 100 | 1.15 |
| BT6RUNC | 9.5 × 300 | 9.50 | 300 | 0.38 | 85 | 1900 (425) | 100 | 1.50 |
| BT6RUNC | 9.5 × 360 | 9.50 | 360 | 0.38 | 106 | 1900 (425) | 100 | 1.80 |
| BT6RUNC | 9.5 × 450 | 9.50 | 450 | 0.38 | 135 | 1900 (425) | 100 | 2.30 |
| BT6RUNC | 9.5 × 600 | 9.50 | 600 | 0.38 | 180 | 1900 (425) | 100 | 3.15 |
| BT6RUNC | 9.5 × 760 | 9.50 | 760 | 0.38 | 230 | 1900 (425) | 100 | 3.30 |
Recommended Installation Tools
BTCT007
Cable Tie Tensioning & Manual Cutting Tool
Suitable for cable ties from 4.6 mm to 12 mm width. Weight: 0.75 kg.
BTCT008
Cable Tie Tensioning & Auto Cutting Tool
Suitable for cable ties of 4.6 mm and 7.9 mm width. Weight: 0.7 kg.

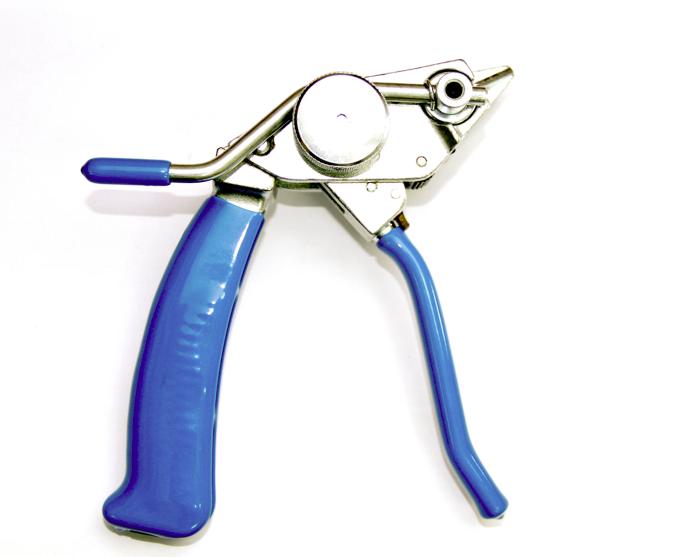

BTST009
Tensioning & Cutting Tool
Suitable for 6 mm to 16 mm width. Designed for stainless steel bands, coated bands and cable ties. Weight: 1.0 kg.
